Sampling machines

Geoprobe^® 420M

This small machine was developed with the aim of having a powerful but light and maneuverable Direct Push platform. With a weight lower than 200 kg and measuring only 160 X 60 cm in transport mode this unit can reach job locations which are cramped or of limited access. The 420M must be connected to an independent hydraulic power source (sold separately) or to the auxiliary hydraulic ports of another Geoprobe^® machine.

To learn more about this model click on http://geoprobe.com/420m

Geoprobe^® 540MT

The Geoprobe^® 540MT has all the power awaited from a  Geoprobe^® Direct Push machine. Manufactured with the same components than the 54 series machines the 540MT is equipped with a hydraulic power pack. It is very maneuverable : 2 persons can easily displace it. In folded/transport mode height is 74 cm and weight is 379 kg. An arm with a handle driving a small wheel allows a 360° rotation for the access to small places.

To learn more about this model click on http://geoprobe.com/540mt

Geoprobe^® 54LT

The Geoprobe^® 54LT is a very compact machine for working in confined locations or on rough terrain. Width is less than a meter, which allows access through standard door openings. Most Geoprobe^® tools and Direct Sensing equipment can be used with the 54LT. With a retraction force of 12T, the 54LT is also easy to transport and to drive around. The unit is very stable and safe.

To learn more about this model click on http://geoprobe.com/54lt

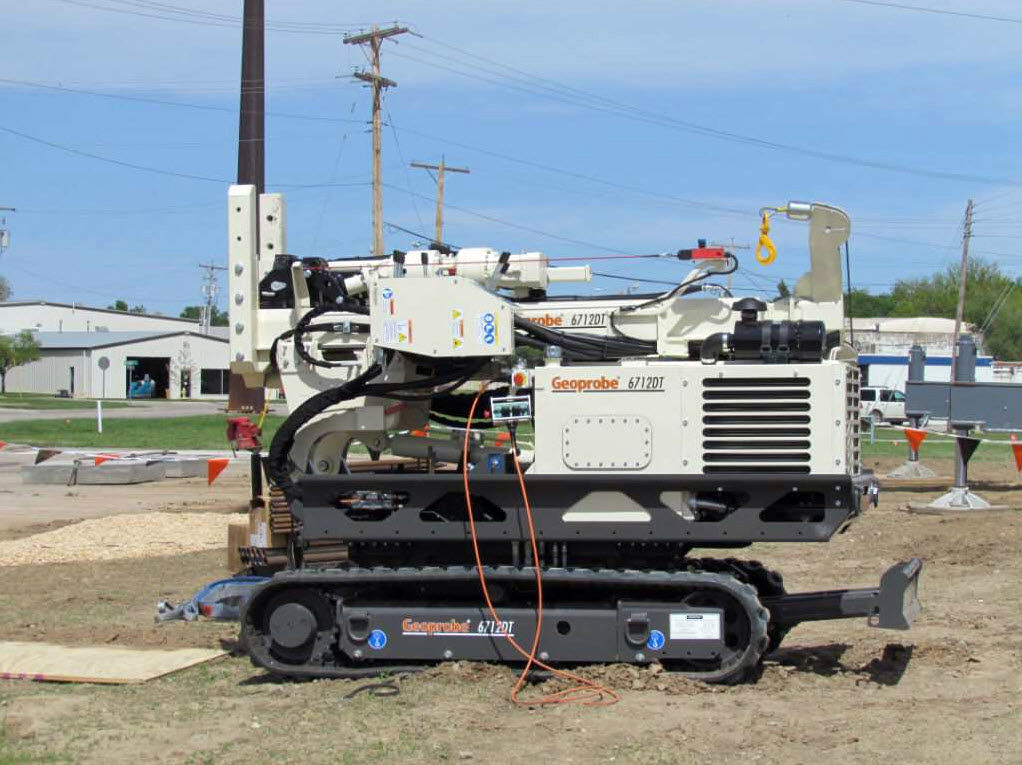

Geoprobe^® 6712DT

Economical, flexible and compact, the model 6712DT is the worthy successor of model 6610DT with very similar features regarding size, efficiency … and a work comfort deserving of the bigger models. What mainly distinguishes model 6712DT from the others is the possibility to dismount it into 3 pieces for transport (e.g. helicopter) into hardly accessible areas. The 6712DT is equipped with a GH63 hammer and can host an optional GA2500 Augerhead for jobs needing use of Hollow Stem Augers.

To learn more about this model click on http://geoprobe.com/6712dt

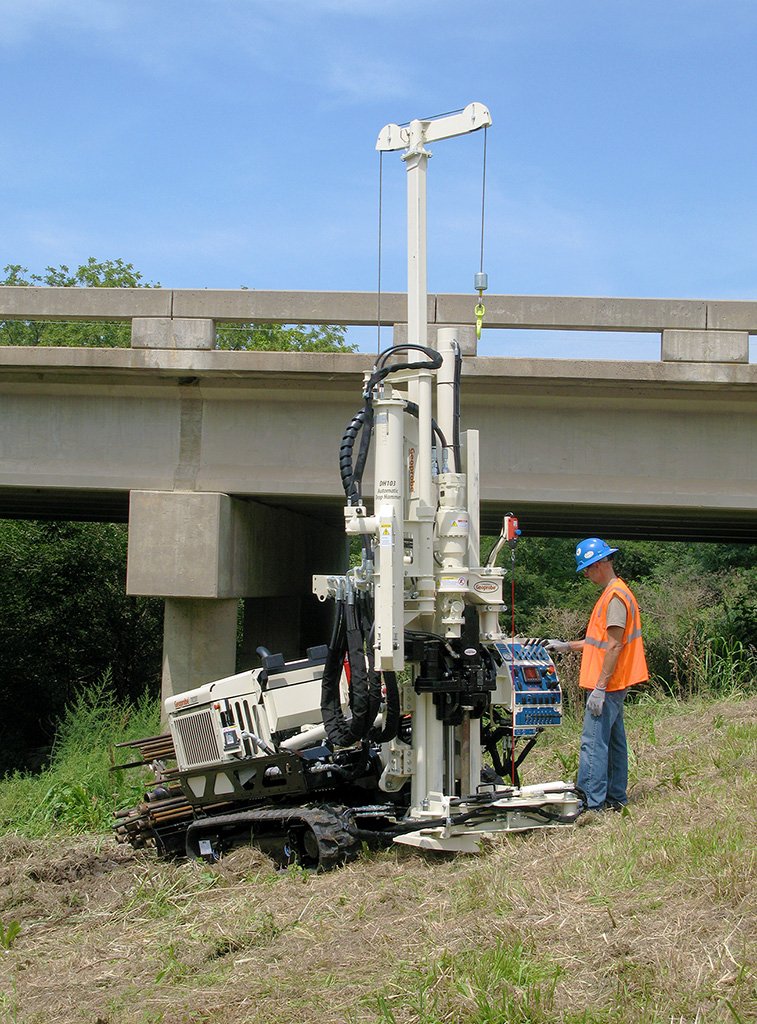

Geoprobe^® 7822DT

The 7822DT is a multi-purpose unit : direct push, rotation and rock coring.  It allows the use of down-the-hole (DTH) hammers and auger work. Despite all of its capabilities the modest size of this unit will allow access to remote locations. It combines the features to which Geoprobe^® customers are used to but also proposes new equipment that will bring maximum flexibility in the most varied field conditions. Numerous options are available : safety cage, water pump, rod breaker …

To learn more about this model click on  http://geoprobe.com/7822dt

Geoprobe^®  8140LC

This unit is equipped with roto-sonic technology which opens new perspectives not accessible before. This compact machine was also designed and manufactured from head to toe by the engineers from Geoprobe Systems^® and shows impressive power. When combined with the sonic tooling, significantly more durable than traditional tooling, the Geoprobe^® 8140LC combines speed with optimal recovery (near 100%) of undisturbed/slightly disturbed soil samples. A long stroke (LS) version is also available.

To learn more about this model click on http://geoprobe.com/8140lc-sonic-drill-rig

If you want more information on the capabilities of these machines or a customized offer for one of them, you can contact Hadrien Piliego by phone on +32 (0) 67 44 25 41 or hadrien.piliego@geoprobe.be.
